Power Supplies of the Top Class Power for your electrophoresis applications

Outstanding performance to meet the highest requirements of standard nucleic acid and protein analysis
Reliable even under high load
Intuitive user interface for high user comfort

All Analytik Jena Power Supplies offer a high-quality design, unmatched technical features and outstanding performance! All three models are
defined by high levels of quality and clearly-structured user guidance ‒ an ideal prerequisite for intuitive and safe operation.

Compact design for easy integration into your laboratory
Comprehensive security feature

Product Details

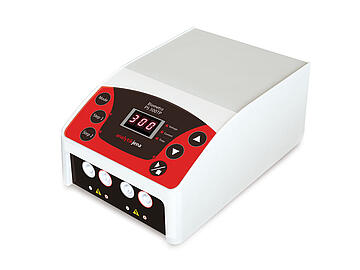

Biometra PS 300TP - Ultra-compact

Combining ultra-compact design, versatility and reliability this power supply is the ideal choice for every scientist. Thanks to its minimal footprint of only 14 cm x 19 cm and its output of 300 V, 400 mA, the power supply can be easily integrated into almost any laboratory environment. User-friendly handling as well as infinitely adjustment of all setting parameters (1 V or 1 mA steps) makes the power pack perfect for nucleic acid or protein separations where precise settings are required.

Very small footprint with two parallel output connectors
Simple programming of 2-step methods
Choice of constant voltage, constant current output
Timer with alarm function

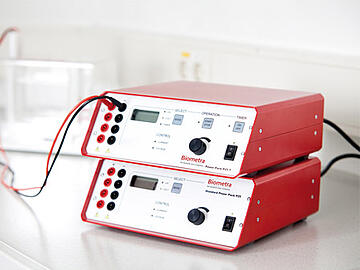

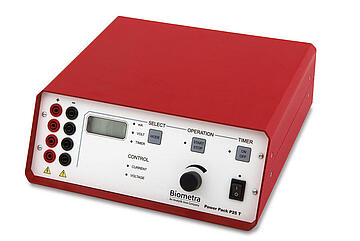

Biometra P25/ P25T - Best choice for electrophoresis and western blotting applications

Excellent performance and superior durability make the Biometra P25 / P25T the most powerful power pack within the Biometra product portfolio. Focusing on simple user interface and robust design, the P25/ P25T has been specifically designed to let you accomplish a large number of simple routine biochemical analysis effectively and reliably. The extremely wide voltage/current range and the four parallel output connectors offer maximum flexibility in setting the operating parameters and will give you the perfect support you need for nucleic acids and proteins analysis.

Ideal for high-throughput electrophoresis in routine laboratories
Easy and error-free programming
Ergonomic display design supports a reflection-free viewing of the setting parameters

Technical Data

Application	Biometra PS 300TP	Biometra P25 / P25T
Agarose Electrophoresis	X¹	X
Polyacrylamide Electrophoresis	X¹	X
Sequencing/IEF	-	-
Semidry Blotting	-	X
Tank Blotting	-	X
Specifications
Output voltage	300 V / 1 V steps	400 V / 1 V steps
Output current	400 mA / 1 mA steps	1.000 mA / 1 mA steps
Max. power	max. 60 W	max. 200 W
Type of output	Constant voltage, constant current	Constant voltage, constant current
Timer	Yes	No/Yes
Pause/ resume function	Yes	No
Audible alarm	Yes	No
Programmable	2-step program	No
Automatic recovery	No	No
IQ/OQ	Yes, optional	Yes, optional
Dimensions (W x L x H)	14.0 x 19.1 x 8.4 cm	26.5 × 25.0 × 9.5 cm
Weight	0.9 kg	2.9 kg
Stackable	No	Yes
Number of output jackets	2 sets in parallel	4 sets in parallel
Display	LED Display	LCD Display
Power supply	100 - 240 V ± 10%	100 - 240 V ± 10%
¹ for maxi gels it is recommended to run only one gel.

Order Info

Order number	Item
846-040-101	Biometra PS 300TP Mini Power Pack with EU plug, 300 V, 400 mA, 60 W, 2‑step program
846-040-191	Biometra PS 300TP Mini Power Pack with US plug, 300 V, 400 mA, 60 W, 2-step program
846-040-800	Biometra P25 Standard Power Pack, 400 V, 1.000 mA, 200 W
846-040-850	Biometra P25T Standard Power Pack with timer, 400 V, 1.000 mA, 200 W

Accessories
Order number	Item
846-010-026	Standard safety adaptor set (4 mm/4 mm), conical, for use with sheated 4 mm male plug instrument leads to non-sheated 4 mm power supply output jacks
846-010-027	Safety adaptor set (4 mm/4 mm), cylindrical, for use with sheated 4 mm male plug instrument leads to non-sheated 4 mm power supply output jacks
846-022-007	Safety adaptor set (4 mm/2 mm), for use with sheated 4 mm male plug instrument leads to 2 mm high-voltage power supply output jacks
846-022-018	Safety adaptor set (2 mm/4 mm), for use with sheated 2 mm male plug instrument leads to sheated 4 mm power supply output jacks
846-010-031	Safety adaptor (4 mm/4 mm), for use with sheated 4 mm male plug instrument leads to recessed 4 mm Bio-Rad power supply output jacks
