multi X 2500 AOX-Analysator

multi X 2500 AOX/TOX analyzer

  • Broad range of applications – AOX, EOX, POX, TOC, TX/TOX
  • Both vertical and horizontal sample feeding in one system
  • High sample throughput  and accurate measurement
  • Low operating costs and maintenance effort

Product Details

The allrounder for environmental monitoring

In environmental monitoring as well as in process and quality control, the determination of organic halogens which can be adsorbed by activated charcoal is very important for the evaluation of water and waste water. With the multi X 2500, Analytik Jena provides a flexible, future-oriented system for sum parameter analysis that meets the requirements of every modern laboratory.

AOX/TOX/EOX/POX/TX analysis Thanks to the innovative double furnace technology and the proven gas lock for sample introduction multi X 2500 is a completely new generation of AOX analyzers.

Double furnace technology The innovative double furnace technology with tilting furnace combines the advantages of both the vertical and horizontal furnace into one analysis system. A design that sets standards.

High degree of operator convenience due to

  • Very easy handling
  • Plug-and-start technology
  • Significantly reduced maintenance work
  • Intelligent software package multiWin
  • Fast changeover between batch and column method
  • User-friendly design ensures outstanding ease of use and efficiency
  • High sample throughput in the vertical and horizontal mode

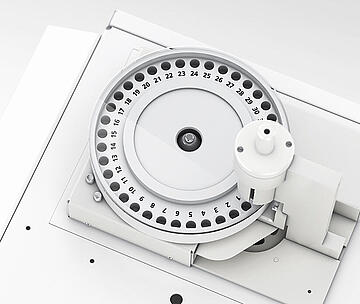

The fully automated autoX samplers are available in a variety of versions and with different capacity.

multi X 2500 Technology Highlights

Learn more: multi X 2500 Technology Highlights

AOX sample preparation

Learn more



Show applications


  • Determination of Adsorbable Organic Halogens in Highly Saline Water Samples after Solid Phase Extraction (SPE-AOX)

    Open application

  • Linearity test according to DIN EN ISO 9562 (column method)

    Open application

  • Linearitätstest für die AOX-Bestimmung nach DIN EN ISO 9562 (Säulenmethode)

    Open application

  • Bestimmung von adsorbierbaren organisch gebundenen Halogenen in stark salzhaltigen Wasserproben nach Festphasenextraktion (SPE-AOX)

    Open application

  • Bestimmung des AOX in Abwasserproben mittels Säulenmethode gemäß DIN EN ISO 9562

    Open application

  • Determination of AOX in Wastewater Samples by Column Method According to DIN EN ISO 9562

    Open application

  • Bestimmung des Parameters AOX in Klärschlamm mittels Schüttelmethode gemäß EN 16166

    Open application

  • Determination of AOX in Sewage Sludge Samples by Batch Method According to EN 16166

    Open application

multiWin Software For optimized system performance and simple measurement

The self-explanatory multiWin software accompanies the user through all relevant menu points. The software monitors and regulates at the same time all the important system parameters and informs immediately about errors in the system configuration and about the input of inappropriate parameters, thus preventing any unusable results from the outset. multiWin checks for you the system performance and the quality of the analysis, delivers a clear display of the measurement results, and much more. multiWin provides free evaluation of sample data even during running measurements, the automatic selection of the optimum calculation function, the fully automatic set up of calibration curves for the various measuring ranges as well as the possibility of individual recalculation of results.

  • Intuitive user guidance
  • Comprehensive user-oriented functions like multi-point calibration, blank value correction, recalculation of results, free choice of results dimensions, statistical functions
  • Fully automatically control of maintenance intervals
  • Comfortable management and storage of data and parameters
  • Automatic or manual data export (LIMS, MS Excel)

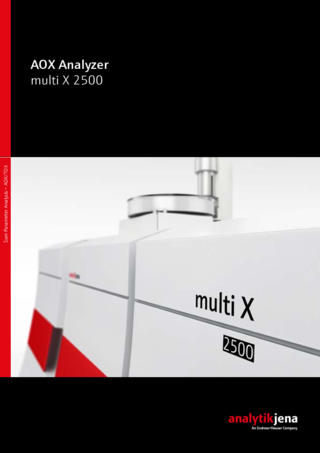

Brochure AOX/TOX/EOX analyzer multi X 2500 (English)
