UVP Inkubator

UVP Incubator Precise temperature control and high temperature uniformity

  • Minimal benchtop space
  • Microprocessor controlled for high temperature uniformity
  • Reliable sterilization by shortwave (254nm) UV light
  • Shelves adjustable at three positions

Product Details

The UVP Incubator provides precise temperature control and uniformity for the incubation of biological assays, fungal, bacterial cultures, eggs and other samples up to 68 °C. The instrument is equipped with built-in overhead shortwave 254nm UV tubes for sterilization of the incubation chamber between experiments. By utilizing the germicidal properties of UV light eliminating viable fungi, bacteria and yeast cross contamination between experiments is prevented. For protection of the personnel the incubator door blocks UV light and will not allow UV radiation to pass through. The germicidal lamp will shut off if the door is opened. There is no risk of damage to unprotected eyes and skin by the powerful source of UV radiation. For safety the UVP Incubator provides an automated process for the decontamination by high-intensive shortwave UV light. Furthermore the interior of the instrument is made of stainless steel and easy to clean by non-abrasive mild detergents. The instrument is delivered with two shelves made of stainless steel that can be adjusted at three different positions. This flexibility can be used for simultaneously incubation of various samples of different heights.

Technical Data

Technical Data

Controller

PI

Setpoint

Digital

Display

Digital LED

Temperature Range

RT +3 °C to 68 °C

Temperature Sensor

LM345 Integrated Temperature Sensor

Temperature Accuracy

+1 °C

Temperature Uniformity

+0.5 °C auf 37 °C

Interior volume

26,9 liters

Average Relative Humidity
(Interior)

~ 80%

Interior

Stainless steel

Exterior

Aluminum powder coated

Door

Acrylic

Exterior W x H x D

44.5 x 43.2 x 35.6 cm

Interior W x H x D

35.6 x 27.2 x 27.7 cm

Dimensions shelves (W x D)

33.8 x 21.6 cm

Construction shelves

Formed stainless steel

Surface area shelves

729.35 cm2

Heating Element

1.250 Watts
3.923,9628779 BTU/h (115 V, 10 A)

Weight

21.3 kg

Max. Power Consumption

115V 60 Hz, 230V 60 Hz or
110V 50/60 Hz and 1150 W

Working conditions

5 °C to 40 °C, max. 2.000 m NN

Order Information

Previous description: UI 950

Order numberDescription
849-30005-2UVP Incubator, 230V UK + EU
849-30005-4UVP Incubator, 115 V, US
849-30005-5UVP Incubator, 100 V, US
Optional Accessories
Order numberDescriptionQuantity
849-30200-0

Key, replacement

1
849-00015-0

Tube, 8-watt, 254 nm shortwave germicidal

1
849-30201-0Shelve, stainless steel ventilated1
849-20602-0Face Shield, UV blocking (UVC-803)1
849-00011-0UVX Radiometer1
849-00012-0UVX Sensor (UVX-25)1

Downloads

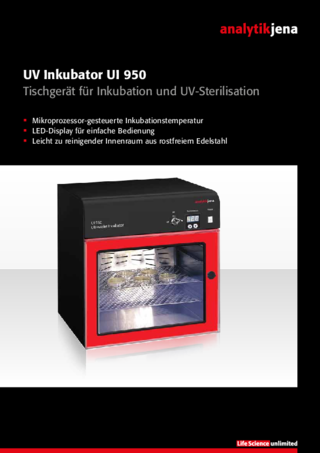

Brochure UV Incubator

Open PDF
