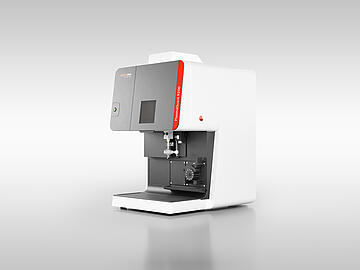

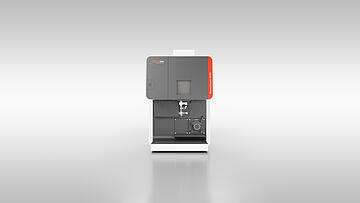

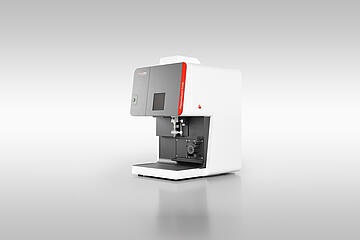

PlasmaQuant 9200 Series Compact Size. Peak Performance.

Discover market-leading resolution with unmatched matrix tolerance in a compact analyzer. Enjoy efficiency, easy handling, and the smallest footprint in the ICP-OES market.

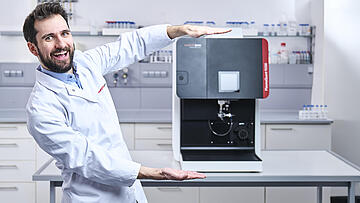

Space-Saving Powerhouse

Quick instrument start-up, robust plasma and the smallest footprint on the market – with the PlasmaQuant 9200 series you not only save time and money, but also valuable lab space.

• We reduced the instrument size by more than 40 percent, making the PlasmaQuant 9200 the smallest instrument in its class, with only 60 cm width
• Master any matrix with up to 1,700 Watt of plasma power
• Save time and resources with quick boot-up time of less than 10 minutes

Simply Reliable

Effortless handling, easy consumable replacement, and long-term reliability. The PlasmaQuant 9200 series ensures carefree use, application safety, and full flexibility.

• Mix and match your torch – Depending on your samples, use the material that fits best, with our completely modular solution
• The Dual View PLUS allows to measure each sample with the optimum plasma observation modes to avoid repetitive sample measurements
• With a tailor-made service contract, you are always on the safe side, be it for regular maintenance for more sustainability or quick help when you need it

Technical Data

For more information about our products and possible variants, please refer to the technical documents or use our contact form.

Standards

1881/2006 of the EU, AOCS Ca 17-0, ASTM D4806, ASTM D4951, ASTM D5185, ASTM D5708, ASTM D7111-15a, ASTM D7111-16, ASTM D7691, DIN EN 14538, DIN EN 15376:2014-12, DIN EN 15837:2010-04, DIN EN 16174:2012-11, DIN EN 228:2017-08, DIN EN ISO 11885 (E22), GB/T 11064.16, IEC-62321, ISO 10540-3, ISO 21033, ISO 22241, ISO-11885:2007, UOP 796, UOP-296

Order Information

Technology at the Highest Level for Demanding Routine Analyses High-Resolution Optics – Maximum Sensitivity – Ultimate Confidence in Your Results

The advanced optical system delivers exceptional resolution, enabling outstanding sensitivity, precision, and accuracy – even in the most complex sample matrices. The proven encapsulated echelle spectrometer combines a dual monochromator with a powerful high-resolution CCD detector, providing full access to all emission lines across the 160 to 900 nm spectral range. With a spectral resolution of up to 2 pm @ 200 nm, even the most challenging interferences can be reliably separated. With over 43,000 selectable lines, you can pinpoint the ideal emission line for your application and gain deeper insights into your samples. High sensitivity from interference-free lines ensures robust trace element analysis and maximum result reliability. The automatic neon correction guarantees a wavelength accuracy of less than 0.4 pm – without the need for elaborate calibration – and delivers system readiness in under 10 minutes.

Your benefits:

• Maximum flexibility thanks to a comprehensive selection of emission lines
• Interference-free spectra for precise results
• Reliable detection even in complex sample matrices
• Fast system readiness with short startup times

Intuitive Operation – The V Shuttle Torch

The modular V Shuttle Torch with plug-and-play design simplifies maintenance and increases system uptime. Interchangeable components allow for flexible method adaptation while reducing consumables costs. All gas connections automatically engage as the torch clicks precisely into the guide rail – no tools required. The vertical plasma setup enables highly precise analysis of matrix-rich samples without the need for time-consuming pre-dilution and ensures minimal background signals. Even under harsh conditions, the system provides excellent long-term stability – free from deposits or soot buildup.

Your benefits:

• Reduced maintenance and increased availability
• Broad application scope with strong analytical performance
• Efficient use of consumables
• Torch replacement without alignment

Flexible Plasma Observation – Dual View PLUS

Trace and major elements require different plasma viewing modes. Dual View PLUS allows axial or radial observation for each emission line – offering two perspectives per sample. This enables detection of concentrations ranging from the sub-ppb to high-percent levels. Automatic signal attenuation in both viewing directions ensures an exceptionally wide dynamic range. Integrated counter-gas technology minimizes interference from the cooler plasma tail while maintaining the stability of the axial viewing zone. The result: high-sensitivity analysis with minimal sample preparation effort.

Your benefits:

• Optimal observation modes for every application
• Counter-gas technology for enhanced sensitivity
• Single-run detection from sub-ppb to percent levels
• Minimal sample preparation required

A Technological Edge – The Latest Generation RF Generator

The modern 27 MHz RF generator delivers highly stable and powerful plasma – even for demanding sample matrices. Low matrix-specific detection limits, reduced sample handling, and robust methodologies significantly enhance the precision and efficiency of your analysis. The high-performance three-turn coil supports a power range from 700 to 1700 Watt, making it ideal for routine industrial applications such as brines, metal concentrates, or volatile organics. Thanks to its short warm-up time, the system is ready for use within minutes.

Your benefits:

• Stable plasma generation for any sample matrix
• Accurate results without dilution steps
• Maximum flexibility for changing applications
• Reliable detection even in challenging sample types

Software ASpect PQ

ASpect PQ Software – Smart Control for Maximum Efficiency

ASpect PQ software centrally controls, monitors, and documents all processes within the PlasmaQuant 9200 system – with precision, reliability, and ease of use. Its modular architecture offers the flexibility to work with predefined routine methods or to develop custom methods tailored to specific analytical needs.

Powerful automated tools such as Automatic Baseline Correction (ABC) and Correction for Spectral Interferences (CSI) streamline data evaluation, eliminate guesswork, and significantly boost laboratory productivity. A clear, multilingual user interface allows you to quickly configure matrix-specific methods by simply selecting the elements and preferred emission lines. All essential method parameters are automatically loaded and can be easily adjusted.

Note: With the launch of the new PlasmaQuant 9200, ASpect PQ has received a targeted update – enhancing its stability, usability, and overall performance.

Your benefits at a glance:

• Advanced routines for method optimization, evaluation, and recalculation
• Fully compliant with 21 CFR Part 11 – including an updated FDA module and user management
• Innovative automation features like ABC and CSI for reliable data quality
• Seamless LIMS integration for efficient data transfer

ASpect PQ meets all regulatory requirements, including FDA compliance. User rights can be flexibly configured, and system access is secured via personal passwords or Active Directory. All key events – such as logins, measurements, calibrations, and system checks – are recorded in a detailed audit trail. Electronic signatures support routine review and approval of measurement data.
