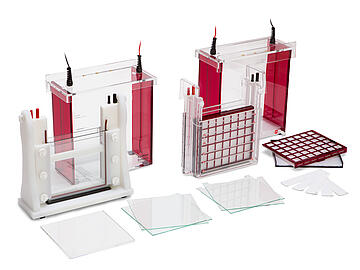

Biometra Eco Maxi Heade Image

Biometra Eco-Maxi

  • Gel dimensions 19.4 cm x 18.5 cm (W x L)

  • Double-gel system

  • Bigfoot Safety Lid

  • Casting Stand for 1 or 2 gels

  • Cooling option (integrated water circulation system)

Product Details

Modular Tank System for Polyacrylamide Gel Electrophoresis and BlottingEco-Maxi Electrophoresis System
Eco-Maxi comes with glass plates with 21 cm width and 20 cm length. Eco-Maxi is also compatible for Maxigel glass plates. For electrophoretic separation under controlled temperature conditions the use of the EBC buffer tank with cooling option (integrated water circulation system) is recommended. The problem of smiling effects and ineffi cient protein resolution due to the heat development in larger gels is reliable avoided. The buffer chambers EB (without cooling option) and EBC (with cooling option) are compatible with the Blot Module for Tankblot Eco-Maxi. For tank blotting, the use of buffer tank EBC with integrated cooling option is recommended. When using the buffer tank EB without cooling option, the transfer should be performed in a cold room. The Bigfoot Safety Lid with its specially designed foot allows a space saving and safe storing of the lid when not placed on the buffer tank. According to customer requirements a lot of special confi gurations by a large number of additional component parts are possible (i. e. analytical, preparative or microtiter plate compatible combs).

The Blot Module for Eco-Maxi is available separately and will convert the
corresponding electrophoresis apparatus into a powerful wet-blotter.

Casting Stand for Eco-Maxi

The casting chamber allows an easy, fast and leak-proof assembly for 1 or 2 glass plates sandwiches.
Preliminary, for casting gels one or two glass plates sandwiches are set into the electrophoresis module and fixed with the side clips. Because the spacers are permanently fixed to one glass plate, the often difficult adjustment of large spacers and glass plate is no longer necessary.

In a second step, the electrophoresis module with the glass plates sandwiches is inserted into the specially designed gel casting stand and it is fixed easily and reliable by two eccentric vices. By the use of a unique high-tech material for the gasket in the casting stand and special anti-slip device of the side clips leakage proof is guaranteed. After polymerisation of the gels, the complete assembly of electrophoresis module and glass plate sandwiches are taken from the casting chamber into the buffer tank for electrophoretic separation. Specially formed slots in the side walls of the buffer tank allow a rapid and safe positioning of the module.

Technical Data

Eco-Maxi
Apparatus dimensions
(W x D x H)

32.5 x 15.0 x 38.5 cm (buffer tank EB)
32.5 x 15.0 x 40.0 cm (buffer tank EBC)

Gel size (W x L)

19.4 x 18.5 cm

Glass plate size (W x L)

21.0 x 20.0 cm

Number of gels1 or 2
Capacity

max. 30 samples per gel (60 samples total)

Typical sample volumes18 µl to 2,340 µl per well (depending on gel thickness)
Combs













 		Thickness
(mm)		Number of WellsVolume per
Well (µl)
0.751 prep. + 2 marker lanes2 x 30 and 9701
 1270
 19 MTP comp.32
 2530
 3020
1.01 prep. + 2 marker lanes2 x 45 and 1,3101
 1295
 19 MTP comp45
 2540
 3029
1.51 prep. + 2 marker lanes2 x 75 and 2,3401
 12165
 1970
 2570
 3052
Buffer volumemax. 5,400 ml for electrophoresis (buffer tank EB and EBC)
max. 6,100 ml for blotting (buffer tank EB and EBC)

1 Volume of the preparative well

Order Information

Order numberItem
846-017-400Eco-Maxi System EB, complete system with buffer chamber EB (without cooling base), Bigfoot Safety Lid, Electrophoresis Module, 2 glass plates with fixed 1.0 mm spacers, 2 notched glass plates, 2 combs (1 mm, 12 well) and Casting Stand
846-017-401Eco-Maxi EB, dto., but without Casting Stand
846-017-402Eco-Maxi System EBC, complete system with buffer chamber EBC (with integrated cooling base), Bigfoot Safety Lid, Electrophoresis Module, 2 glass plates with fixed 1.0 mm spacers, 2 notched glass plates, 2 combs (1.0 mm, 12 wells) and Casting Stand.
Note: Buffer chamber EBC is compatible with Eco-Maxi Blot Module
846-017-403Eco-Maxi EBC, dto., but without Casting Stand
Order numberAccessories
846-017-480Casting Stand (two place) for Eco-Maxi
846-017-420Glass plate with fixed spacers, 1.0 mm
846-017-421Glass plate with fixed spacers, 0.75 mm
846-017-423Glass plate with fixed spacers, 1.5 mm
846-017-425Notched glass plate
846-017-426Dummy Plate for running single gels
 Combs, 0.75 mm thick(max. volume/well)
846-017-43012 wells70
846-017-43119 wells, multichannel pipet compatible32
846-017-43225 wells30
846-017-43330 wells20
846-017-434preparative, with 2 marker lanes2 × 30 and 970
 Combs, 1.0 mm thick(max. volume/well)
846-017-44012 wells95
846-017-44119 wells, multichannel pipet compatible45
846-017-44225 wells40
846-017-44330 wells29
846-017-444preparative, with 2 marker lanes2 × 45 and 1.310
 Combs, 1,5 mm thick(max. volume/well)
846-017-45012 wells165
846-017-45119 wells, multichannel pipet compatible75
846-017-45225 wells70
846-017-45330 wells52
846-017-454preparative, with 2 marker lanes2 × 75 and 2.340
846-017-471Buffer chamber EB (without cooling base) for Eco-Maxi and Tankblot Eco-Maxi, without Bigfoot Safety Lid
846-017-472Buffer chamber EBC (with integrated cooling base) for Eco-Maxi and Tankblot Eco-Maxi, without Bigfoot Safety Lid
846-017-474Bigfoot Safety Lid, with cables and safety plugs for Eco-Maxi and Tankblot Eco-Maxi
846-017-475Electrophoresis Module for Eco-Maxi (1 or 2 gels)
846-018-405Blot Module for Eco-Maxi (incl. 2 Blotting Cassettes)

Downloads

Product Brochure Eco-Line

Open PDF
