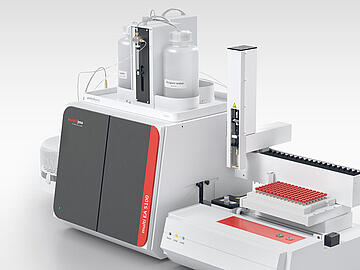

ICprep series Prep smarter, not harder
- Efficient - Automate up to 100 samples in a sequence
- Stress-free - Make your samples IC-ready with ease
- Budget-friendly – Your entry into AOF/EOF and TF sample prep
- Flexible - Adapt to various standards and applications
Discover the cost-effective entry into sample preparation for AOF analysis with ICprep. Effortlessly prepare your samples for ion chromatography and other detection techniques while maximizing lab productivity with high throughput and streamlined workflows.
Increase your lab efficiency
We developed ICprep to make sample preparation for ion chromatography and other detection techniques like ISE (ion-selective electrode) and photometry easier than ever. ICprep transforms your lab's efficiency by enabling high throughput and optimized workflows. This frees up valuable time for other crucial tasks. With smart technology, you can count on fast workflows and precise results, regardless of sample type or quantity
- Fraction collector with up to 100 samples
- Safe and matrix-optimized combustion
- Fast switch between liquid and solid samples
- Wide range of applications (AOF, AOBr, AOI, AOCl, AOX, EOF, TF, TOF)
- Complete AOF sample prep workflow from sample to IC-ready
- Eliminating sample contamination and saving time through complete column combustion
- Flexible use of detectors (IC, ISE, photometry, HR-CS MAS, … )
Stress-free analysis for AOF and beyond

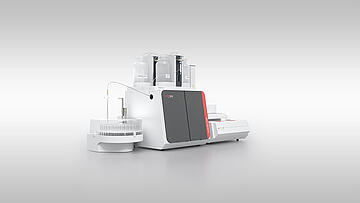

Benefit from smart technology and optimized workflows, regardless of sample type or quantity. ICprep gives you the flexibility of working with different sample types. Both, liquid and solid samples are introduced both by our Multi Matrix Sampler (MMS), change-over between both takes less than 5 minutes even for beginners. The Automatic Boat Drive (ABD) allows time- and matrix-optimized sample combustion in horizontal operation mode.
All samples are completely oxidized through pyrohydrolytic combustion in a high-temperature, oxygen-rich environment. The unique flame sensor technology ensures quantitative and soot-free combustion for organic-rich matter. This guarantees maximum operational safety and reliable measurement results with less replicates.

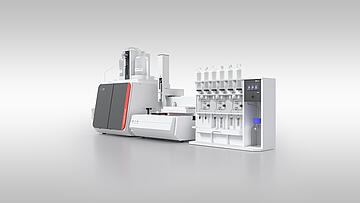

Designed for sample preparation, our ICprep and APU series seamlessly integrate to provide a comprehensive solution for the entire AOF sample preparation workflow. From column adsorption or solid-phase extraction (SPE) for aqueous samples to pyrohydrolytic combustion, our systems ensure precision, efficiency, and reliability at every step. We eliminate sample contamination through complete combustion and direct measurement without charcoal ejection. Additionally, we offer a wide range of suitable columns and consumables, along with personalized application support.
The ICprep series offers solutions tailored to your lab's needs. For labs with lower sample throughput, our basic version is the perfect choice. However, you can always upgrade to our 100-position fraction collector. As an existing user of Analytik Jena combustion elemental analyzers, you can easily integrate ICprep with your current system to expand your application range without increasing bench space or investing in an additional system. Upgrades are available for most systems (multi EA 5000, multi EA 5100 and multi X 2500).
ICprep carries out sample combustion using pyrohydrolysis in accordance with the following standards:
- AOF sample preparation compliant to DIN 38409-59 and EPA 1621
- Sample preparation for halogen (F, Cl, Br, I) and sulfur (S) determination according to ASTM D8150, ASTM D8247, ASTM D7359 UOP 991, EN 17813
Products

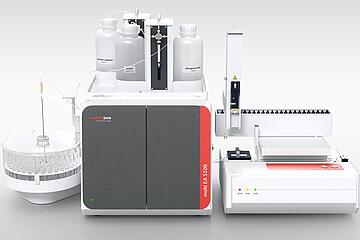

ICprep automatic
Effortless sample preparation for high throughput demand. Pyrohydrolytic combustion and absorption for organic solids and liquids, AOF, EOF and TOF samples. Automated preparation of of to 100 samples per sequence.
Order number: 450-300.102

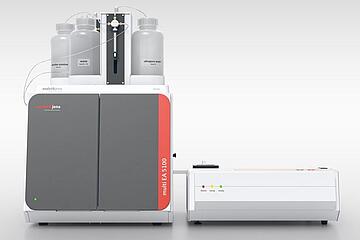

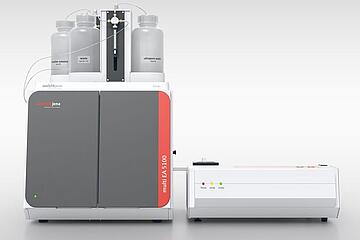

ICprep basic
Flexible sample preparation for small series. Pyrohydrolytic combustion and absorption for organic solids and liquids, AOF, EOF and TOF samples.
Order number: 450-300.101
Technical Data
| Dimension (width x depth x height) | Space requirement (width x depth x height) | |
|---|---|---|
| ICprep automatic 450-300.102 | 1850 mm x 550 mm x 870 mm | 1500 mm x 600 mm x 870 mm |
| ICprep basic 450-300.101 | 1055 mm x 550 mm x 870 mm | 1550 mm x 600 mm x 870 mm |
For more information about our products and possible variants, please refer to the technical documents or use our contact form.
Standards
ASTM D8150, ASTM D8247, DIN 38409-59, EPA 1621, ISO 18127, UOP 991
Order Information
| Order number | Description |
|---|---|
| 450-300.102 | ICprep automatic - for pyrohydrolytic combustion |
| 450-300.101 | ICprep basic |
Software multiWin Software
Order number: 450-011.803
The self-explanatory multiWin software accompanies the user through all relevant menu points. multiWin is intuitively structured and thus offers the user a comprehensible and simple handling. The Self Check System - an intelligent combination of hardware components and software functions, guarantees uninterrupted and fully automatic operation of the analyzer and its accessories. It monitors and regulates all important system parameters. It immediately points out errors in the configuration of the system and detects unsuitable parameters, thus avoiding low quality results from the very beginning. The software continuously checks the system’s performance and the quality of analysis. multiWin provides free evaluation of sample data even during running measurements, the automatic selection of the optimum calculation function, the fully automatic set up of calibration curves for special applications, the possibility of individual recalculation of results, as well as the clear display of the measurement results. The implemented maintenance counter and intelligent software feature to trigger life time and performance of relevant components make maintenance more predictive, saving time and effort while preventing system failures. Data and parameters can be conveniently managed and stored, and results can be easily forwarded using automatic or manual data import or export functions, including LIMS import and export of data. For elemental analysis with multi EA 5100 and 4000 series the multiWin software includes an extensive library of more than 100 approved, ready to use and stanadard compliant and special application analysis methods. This significantly simplifies analyses according to standard regulations such as ASTM, EPA, DIN, ISO, and UOP. Preconfigured methods eliminate time-consuming method development and allow for fast, correct measurements independant of operators skills.
Features & Benefits
- Modern and user-friendly Windows™ based control and data evaluation software,
- Available as PC version
- Intuitive user guidance with self-explanatory menu navigation avoids operator mistakes
- Automatic optimization routines, monitoring and control of all relevant system parameters and functions
- Multitasking for free evaluation of sample data, even during running measurements
- Special host option allows to control two different systems with the same PC and software
- Different user levels, individual user management
- Easy, quick access menu icons, integrated trainings module, and init-check function enable quick start of operation even for beginners
- Troubleshooting assistant, on-screen help function, implemented service and maintenance modules
- Predictive maintenance – automatic monitoring of maintenance intervals
- Extensive library of ready-made, compliant analysis methods (ASTM, EPA, ISO, etc.) for routine applications and special parameters (e.g. AOX, EC/OC) for multi EA 5100 and 4000 series
- Comprehensive user-oriented functions like multi-point and multi-range calibration, blank correction, recalculation of results, free choice of results dimensions, statistical functions
- Implemented system performance checks – AQA and daily factor functions
- Extensive search, sort and filter functions for methods, calibration and result files
- Versatile export and import functionalities, LIMS, CSV, manual and fully automated etc.
