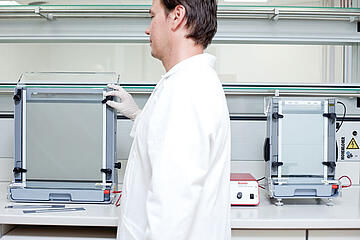

Biometra Model S2 Sequencing gel electrophoresis system
- Standard system with large-sized gel
- Produces a 30 cm x 40 cm gel that fits easily on a standard 14 in x 17 in X-ray film
Product Details
- Produces a 30 cm x 40 cm gel that fits easily on a standard 14 in x 17 in X-ray film
- Integral aluminum plate for even heat distribution to minimise band curvation (“smiling”)
- Removable lower buffer tray with a separate chamber for collecting the buffer from the upper reservoir, eliminating the need to move the apparatus for buffer disposal
- Built-in integral clamps hold the gel in place
- Unique gasket sealing system ensures leak-free operation without grease or notched plates
- Safety interlock lid
- Additional combs and apparatus components available separately
Sequencing Gel Electrophoresis System
The Model S2 Sequencing Gel Electrophoresis Apparatus is designed for vertical polyacrylamide gel separations of oligo- and polynucleotides, nucleic acid sequencing, genotyping and polymorphic studies.
Technical Data
Model S2 | |
|---|---|
| Dimensions (W x D x H) | 42.2 x 21.6 x 44.5 cm |
| Electrode material | platinum |
| Gel dimensions (W x D) | 31.0 x 38.5 cm |
| Maximum gel thickness | 1.6 mm |
| Working buffer volume | 1 L |
| Voltage Range | 2000 V |
| Current Range | 0-125 mA, 0.5 A max. |
| Construction | Flame retardant ABS, acrylic, aluminum, silicone |
| Operating Temperature Range | 4 – 30 °C (non-condensing atmosphere) |
| Weight | 6.32 kg |
Order Information
* Please note: These product is under discontinuation. Sale of remaining stocks. In case of interest please send us your request for availability.
| Order number | Item |
|---|---|
846-21105036 | Model S2: Complete with power cords, four 14 cm 0.4 mm vinyl sharktooth combs, set of 0.4 mm thick vinyl side spacers; pair of glass plates, roll of gel sealing tape |
| Order number | Comb length | Comb thickness | Number of theeth | Volume/ slot | Pcs./ Pckg. |
|---|---|---|---|---|---|
| Square tooth combs | |||||
| 846-21035043 | 28 cm | 0,4 mm | 16 | 25 μl | 1 |
| 846-21035076 | 28 cm | 0,4 mm | 20 | 19 μl | 1 |
| 846-21035068* | 28 cm | 1,6 mm | 16 | 100 μl | 1 |
| 846-21035118 | 28 cm | 0,8 mm | 32 | 20 μl | 1 |
| Shark tooth combs | |||||
| 846-21045018 | 14 cm | 0,4 mm | 25 | 2 – 4 μl | 6 |
| 846-21046016 | 28 cm | 0,4 mm | 50 | 2 – 4 μl | 2 |
| 846-21045026* | 14 cm | 0,4 mm | 49 | 1 – 2 μl | 4 |
| 846-21035134* | 28 cm | 0,35 mm | 62 | 2 – 4 μl | 2 |
| Replacement parts for Sequencing Apparatus Model S2 | |||
|---|---|---|---|
| Order number | Description | Dimensions | Content |
| 846-21105366* | Spacer Set for Model S2001/S2 | 0,35 mm | 2 Spacer, 6 End blocks |
| 846-21108014 | Spacer Set for Model S2001/S2 | 0,4 mm | 2 Spacer, 6 End blocks |
| 846-31109010* | Spacer Set for Model S2001/S2 | 0,8 mm | 2 Spacer, 6 End blocks |
| 846-31109028* | Spacer Set for Model S2001/S2 | 1,6 mm | 2 Spacer, 6 End blocks |
| 846-21107016* | Wedge Spacer for Model S2001/S2 | 0,4 – 1,2 mm | 2 Spacer |
| 846-21105069* | Spacer Set for Modell S2001/S2 | 0,8 mm | 1 Spacer |
| 846-21105382* | Spacer foam blocks | 12 Pieces | |
| 846-11034014 | Glass Plate Set for S2001/S2 | 33 cm × 39 cm | 2 Plates |
| 846-11032018 | Gel Sealing Tape | 1 roll | |
| 846-21105358 | Sealing for buffer chamber S2001/S2 | 1 Pieces | |
| 846-11098019* | Clamps for Gel Sandwich | 12 Pieces | |
| 846-21105283* | Surface temperature | 3 Pieces |
